What does DALI mean in lighting?
DALI stands for Digital Addressable Lighting Interface. It is a 2-way communications protocol that is used to provide control over, and communication between, the components in a lighting system.

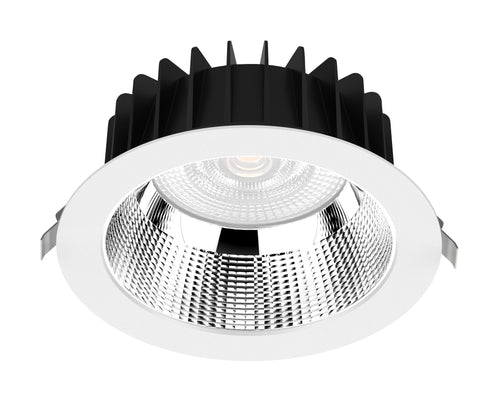

DL178 Series LED downlight designed with a deep reflector, provides Unified Glare Control (UGR<19). It adopts brand CITIZEN COB for uniform and accenting lighting.
Ideal for commercial and residential applications looking for a clean, minimalist look.
Ideal for commercial and residential applications looking for a clean, minimalist look.
Drivers:
- DALI 2.0
- PUSH DIM
- 1-10V Dimmable
- Output power dim, 4-60W
- Whole range are featured with flicker free performance
- Idea circuit design overcome luminaire flickering with voltage fluctuation
- For luminaires of protection class I and protection class II
- Temperature protection as per EN / IEC61347
- Small, super compact dimensions
- DALI signal:16 bit Manchester Code Speed 1 % to 100 %
Product Features:
SOTA-DL178A-3-10W:
- FACE - 110mm x HEIGHT - 54mm
- Cut Out Size - 90-95mm
- Lumens - 1120 lumens+5%
- Trim - White-Black-Silver
- CCT - 2700k,3000k,4000k & 5000k
- UGR (Unified Glare Reduction) - <19
- AC 200-240V
- CRI (Colour Rendition Indexing) >97
- 10 WATTS
SOTA-DL178B-3-13W:
- FACE - 110mm x HEIGHT - 54mm
- Cut Out Size - 90-95mm
- Lumens - 1300 lumens+5%
- Trim - White-Black-Silver
- CCT - 2700k,3000k,4000k & 5000k
- UGR (Unified Glare Reduction) - <19
- AC 200-240V
- CRI (Colour Rendition Indexing) >97
- 13 WATTS
SOTA-DL178-4-18W:
- FACE - 145mm x HEIGHT - 97m
- Cut Out Size - 125-135mm
- Lumens - 2250 lumens+5%
- Trim - White-Black-Silver
- CCT - 2700k,3000k,4000k & 5000k
- UGR (Unified Glare Reduction) - <19
- AC 200-240V
- CRI (Colour Rendition Indexing) >97
- 18 WATTS
SOTA-DL178-6-25W:
- FACE - 172mm x HEIGHT - 90mm
- Cut Out Size - 150-165mm
- Lumens - 2850 lumens+5%
- Trim - White-Black-Silver
- CCT - 2700k,3000k,4000k & 5000k
- UGR (Unified Glare Reduction) - <19
- AC 200-240V
- CRI (Colour Rendition Indexing) >97
- 25 WATTS
SOTA-DL178-8-35W:
- FACE - 172mm x HEIGHT - 90mm
- Cut Out Size - 150-165mm
- Lumens - 3670 lumens+5%
- Trim - White-Black-Silver
- CCT - 2700k,3000k,4000k & 5000k
- UGR (Unified Glare Reduction) - <19
- AC 200-240V
- CRI (Colour Rendition Indexing) >97
- 35 WATTS
