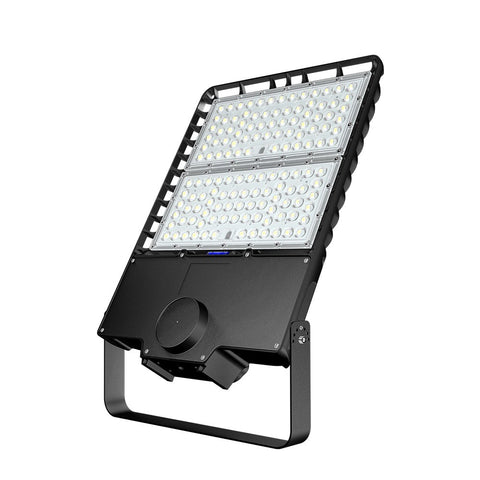

The HI-SUN LED Smart Street Lighting offers improved illumination, with higher lumen levels for better visibility. Smart Street Lighting is operated with Dali 2.0 so therefore a whole street or whole city can be operated remotely for dimming, sensor functions and ON/OFF Functions. Perfect for streets, walkways, and parking lots, the advanced LED technology ensures a longer life and more efficient energy use. Enjoy reliable lighting you can count on. Housing BLACK.
Features:
- 150LM/W, 40% energy saving
- Unique design is better for anti-bird and leaves, independent cooling of light source and power supply which will reduce light decay.
- High Lumen SMD5050 Led chip, the penetration rate is 30% stronger than normal chips.
- The fixture adopts independent split heat dissipation design, can effectively reduce the light decay of the LED's
- Light distribution: Type II, Type III, Type V.
Intelligence:
Accept ANSI standard dimmable photocells to provide a connection between the photocell and the luminaire. Available with two or four dimming contacts to support one or two channel dimming protocols. NEMA Socket 3 PIN, 5 PIN and 7 PIN
- Dali 2.0 Control - Lights can be controlled remotely by computer
- 1-10V Dimming - Lights can be divided into 10 levels to suit any needs
- Timer Control - Lights can be set to operate at set times
- Photocell - Lights Turns ON/OFF depending on ambient light,
- Motion Sensor - Automatic Dimming when used in combination with 1-10V Built-In adjustable daylight sensor widely used in warehouse, street and park way lighting
Product Specifications:
50 Watt: SKU - SOTA-HISUN-50W
- 135 Lumens Per Watt - Lumen Output 6,750 Lumens
- Size - 343mm x 340mm x 100mm
- Weight - 4.2Kg
- CCT Available - 3000,4000,5000 & 6000K
- CRI - CRI>80Ra
- System Efficiency - >90%
- Lens - Type II, Type III, Type V
- Input Voltage - AC100-277V / 480V, 50-60Hz >0.92
- IP Rating - IP67
- Life Span - >100,000 Hours
- Working Temperature - Minus 20 to Plus 50 Degrees
- Warranty - 7 Years
75 Watts: SKU - SOTA-HISUN-75W
- 135 Lumens Per Watt - Lumen Output 10,125 Lumens
- Size - 343mm x 340mm x 100mm
- Weight - 4.2Kg
- CCT Available - 3000,4000,5000 & 6000K
- CRI - CRI>80Ra
- System Efficiency - >90%
- Lens - Type II, Type III, Type V
- Input Voltage - AC100-277V / 480V, 50-60Hz >0.92
- IP Rating - IP67
- Life Span - >100,000 Hours
- Working Temperature - Minus 20 to Plus 50 Degrees
- Warranty - 7 Years
100 Watts: SKU - SOTA-HISUN-100W
- 135 Lumens Per Watt - Lumen Output 13,000 Lumens
- Size - 343mm x 340mm x 100mm
- Weight - 4.4Kg
- CCT Available - 3000,4000,5000 & 6000K
- CRI - CRI>80Ra
- System Efficiency - >90%
- Lens - Type II, Type III, Type V
- Input Voltage - AC100-277V / 480V, 50-60Hz >0.92
- IP Rating - IP67
- Life Span - >100,000 Hours
- Working Temperature - Minus 20 to Plus 50 Degrees
- Warranty - 7 Years
150 Watts: SKU - SOTA-HISUN-150W
- 135 Lumens Per Watt - Lumen Output 19,500 Lumens
- Size - 343mm x 340mm x 100mm
- Weight - 4.5Kg
- CCT Available - 3000,4000,5000 & 6000K
- CRI - CRI>80Ra
- System Efficiency - >90%
- Lens - Type II, Type III, Type V
- Input Voltage - AC100-277V / 480V, 50-60Hz >0.92
- IP Rating - IP67
- Life Span - >100,000 Hours
- Working Temperature - Minus 20 to Plus 50 Degrees
- Warranty - 7 Years
200 Watts: SKU - SOTA-HISUN-200W
- 135 Lumens Per Watt - Lumen Output 26,000 Lumens
- Size - 487mm x 340mm x 100mm
- Weight - 5.4Kg
- CCT Available - 3000,4000,5000 & 6000K
- CRI - CRI>80Ra
- System Efficiency - >90%
- Lens - Type II, Type III, Type V
- Input Voltage - AC100-277V / 480V, 50-60Hz >0.92
- IP Rating - IP67
- Life Span - >100,000 Hours
- Working Temperature - Minus 20 to Plus 50 Degrees
- Warranty - 7 Years
Accessories:
- Slip Fitter Bracket - $56.35
- Round/Square Bracket - $63.10
- Wall Mount Bracket - $52.00
- Trunnion Mount Bracket - $69.65
- Photocell - AC100-277V - $125.00
- Photocell - AC347-480V - $165.20
- Motion Sensor - $128.95
- Surge Protector - AC100-277V - $96.35
- Surge Protector - AC347-480V - $162.25
