Efficiently illuminate your outdoor spaces with our sophisticated SOLAR STREET LIGHTING-ALL IN ONE SERIES. Powered by solar energy, this lighting system offers significant cost savings and reduces carbon footprint. With no electricity consumption, it is easy to install and maintain, providing reliable and eco-friendly lighting solutions.

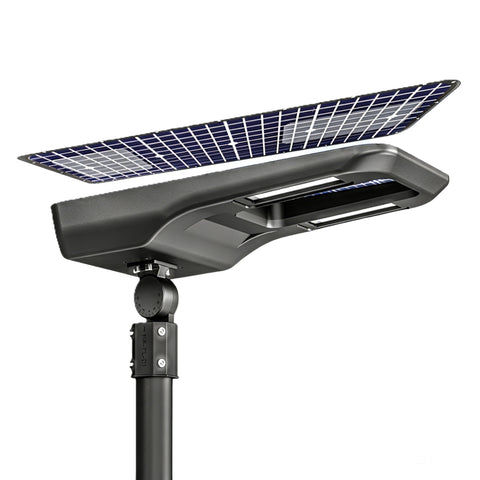

SOLAR E SERIES-DOUBLE CHARGE

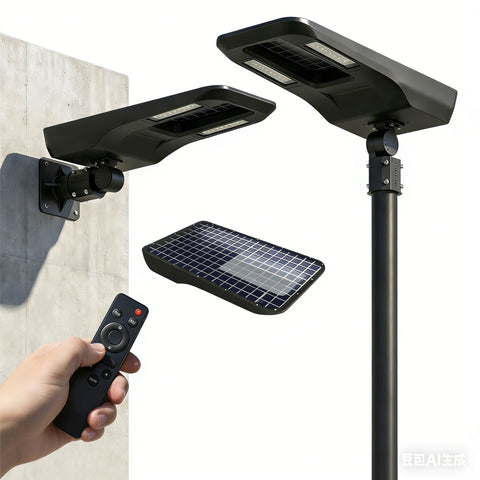

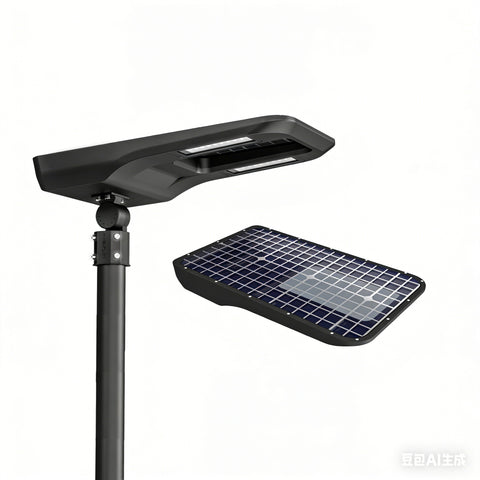

Benefits of the NEW Double Charge Solar Street Lights is there is not just the Solar Panel on the top of the light but there is also one on the down face of the light, the purpose of this is Its main function is to absorb reflected and scattered light from the ground and surrounding environment to generate electricity, thereby improving the overall power generation efficiency by up to 40%.
APPLICATIONS
E-series solar street lights are widely applicable, suitable for city roads, highways, community paths, residential courtyards, parking areas, rural trails, garden walkways, and public squares.
With a modern, stylish design, they provide high brightness while combining functionality and aesthetics. No external power source is needed, as they harness clean, renewable energy, making them eco-friendly and energy-efficient. Easy to install and quick to set up, they add a touch of beauty to any space.

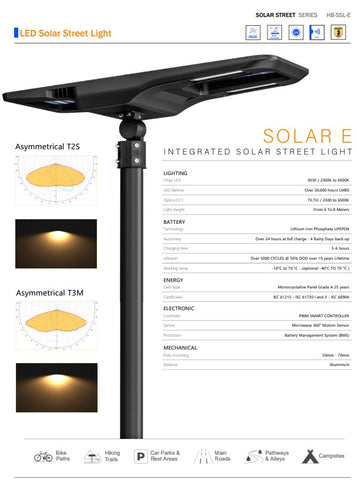

LIGHTING
LED Chips - High Bright 3030
LED lifetime - Over 50,000 hours LM80
Optics/CCT - TII,TIII / 2700 to 6500K
Installation Height - From 6 To 15 Meters

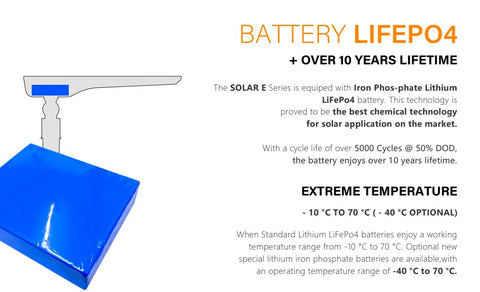

BATTERY
Technology - Lithium Iron Phosphate LIFEPO4
Autonomy - Over 24 hours at full charge - 3 Rainy Days back up
Charging time - 5-6 hours
Lifespan - Over 5000 CYCLES @ 50% DOD over 5 years Lifetime
Working temperature -10°C to 50 °C - (optional -30°C TO 60 °C )
ENERGY
Cells type - Monocrystalline Panel Grade A 25 years
Certificates IEC 61215 - IEC 61730 I and II - IEC 60904
ELECTRONIC
Controller - MPPT SMART CONTROLLER

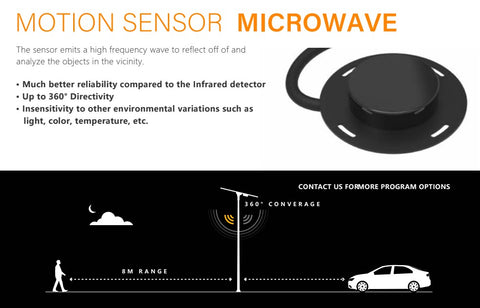

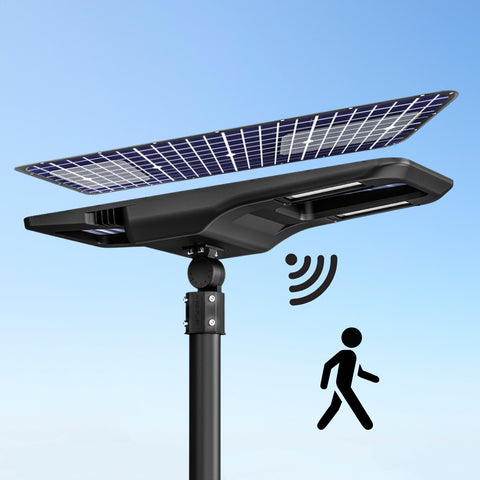

Sensor - Microwave 360° Motion Sensor
Protection - Battery Management System (BMS)
MECHANICAL

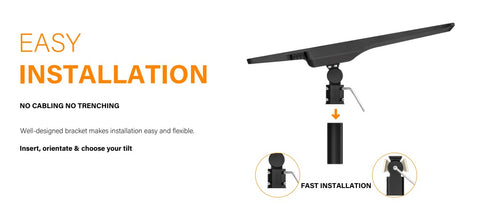

Pole mounting - 50mm - 70mm

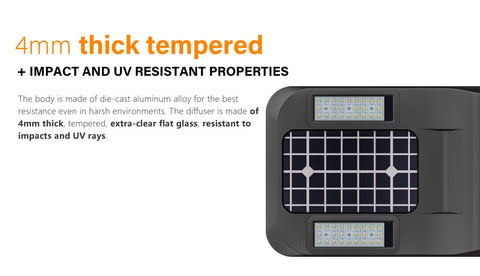

Material - Aluminium
Product Sizes(mm):675*382*86 (30,40,60,80 & 100W)
Part# Watt Lumen Diffuser Solar panel
SO-SSL30W-E 30W 4,800 Glass 35W/18V
SO-SSL40W-E 40W 6,400 Glass 35W/18V
SO-SSL60W-E 60W 9,600 Glass 35W/18V
SO-SSL80W-E 80W 12,800 Glass 45W/18V
SO-SSL100W-E 100W 16,000 Glass 45W/18V
Product(mm):924*382*88 (120 & 150W)
Part# Watt Lumen Diffuser Solar panel
SO-SSL120W-E 120W 19,200 Glass 65W/18V
SO-SSL150W-E 150W 24,000 Glass 65W/18V
